The unique X-frame design—borrowed from our classic 45-Series—delivers exceptional structural strength while maintaining a clean, open-air aesthetic. Its resistance to torsional flex far exceeds that of most conventional frame designs. With massive cross-beams and columns, the structural integrity is, quite frankly, overbuilt—just the way we like it.
These racks are purpose-built for serious, high-end turntable systems. The top level accommodates either a generously sized 19x24-inch platform or an even larger 21x27-inch platform. Lower levels feature our standard 18x18-inch platforms, which can be upgraded to larger sizes for a small additional charge. All pricing includes platforms trimmed in solid cherry hardwood.
These racks are similar to our Reference Series rack, but incorporate a modular upper and lower frame assembly, which allows them to easily be expanded horizontally into a double, triple or quad width rack.
3-shelf - with 19x24 top and two 18x18:
Price $3975.00
.. Special offer $3250.00
3-shelf - with three 18x18 platforms:
Price $3775.00
.. Special offer $3125.00

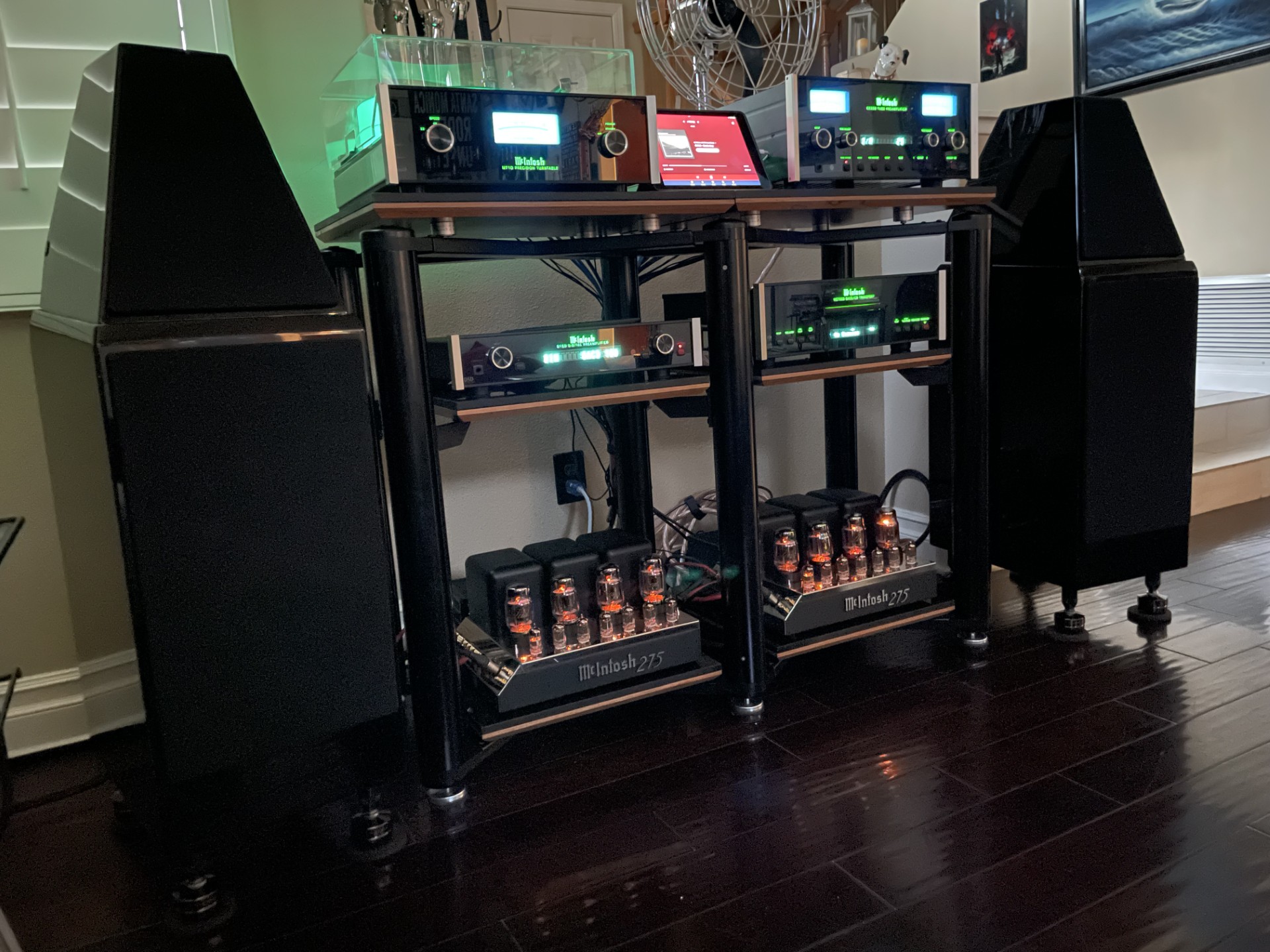

4-shelf - As pictured with 19x24 top and three 18x18:
Price $4400.00
.. Special offer $3700.00
4-shelf - As pictured but with 21x27 top and three 18x18:
Price $4800.00
.. Special offer $3895.00
4-shelf - As pictured but with two 19x24 tops and two 18x18 lower:
Price $5400.00
.. Special offer $4500.00
4-shelf - As pictured with four 18x18:
Price $5000.00
.. Special offer $4175.00
-----------------------------------------------
6-shelf - As pictured with two 19x24 tops and four 18x18 lower:
Price $6275.00
.. Special offer $5700.00
6-shelf - As pictured but with six 18x18:
Price $5950.00
.. Special offer $5400.00
9-shelf - As pictured with two 19x24 and seven 18x18 platforms:
Price $10325.00
.. Special offer $8575.00
9-shelf - As pictured but with nine 18x18:
Price $9900.00
.. Special offer $8250.00
With 19 x 24 cherry-trimmed platform:
Price $1350.00
.. Special offer $1175.00
With 18 x 18 cherry-trimmed platform:
Price $1175.00
.. Special offer $1025.00
----------------------------------------------------------------------
----------------------------------------------------------------------
Quality Materials and Construction
These racks are handcrafted using only premium-grade materials and are meticulously computer-modeled and stress-analyzed to ensure superior performance. They incorporate a substantial number of custom-machined and fabricated components, which contributes to a higher manufacturing cost compared to our other product lines. However, the performance they deliver surpasses that of many competitive racks priced significantly higher. Proudly made in the USA!

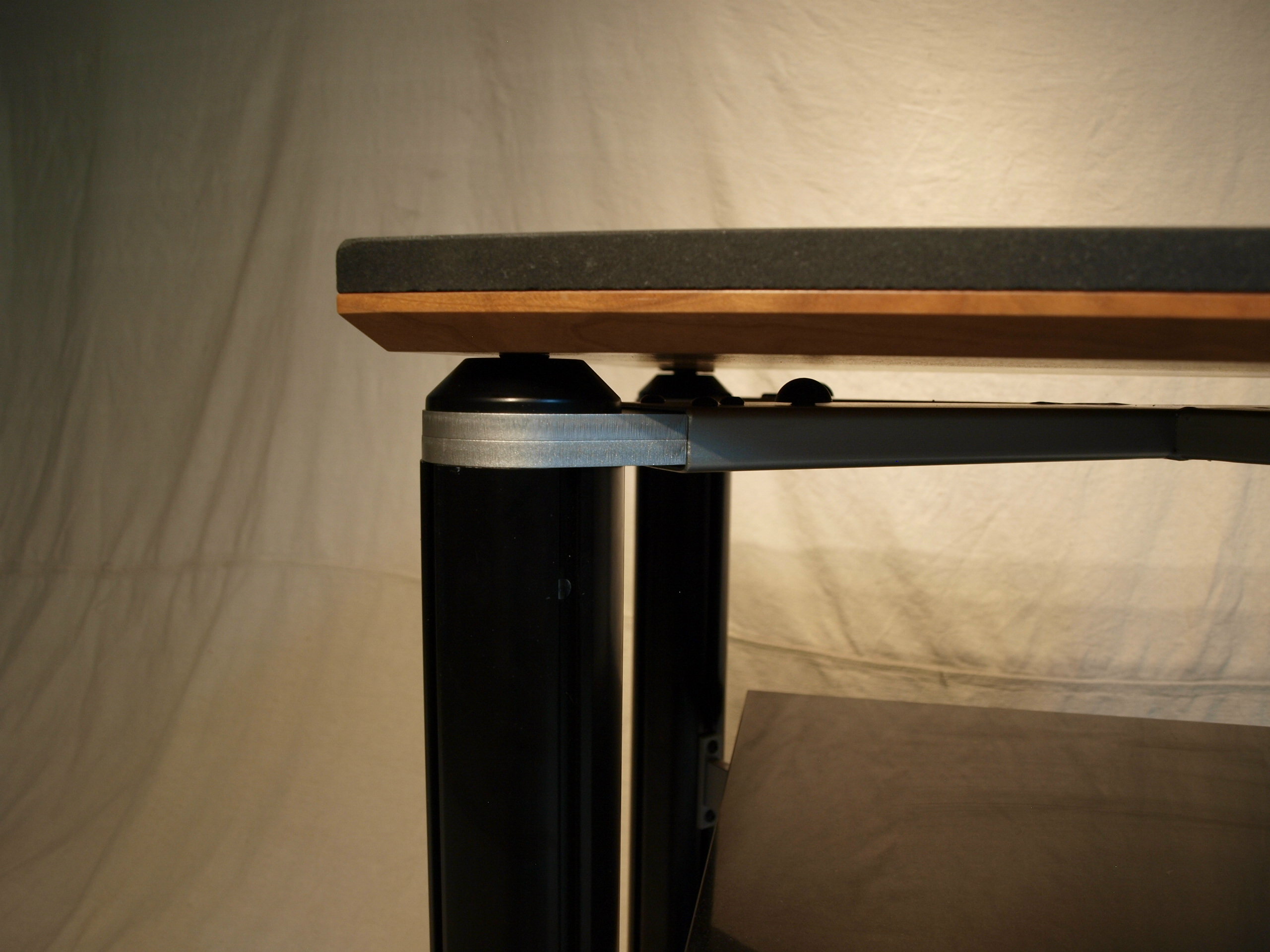

Our famous Multi-Element Platforms
Our renowned three-element platforms combine the benefits of multiple advanced material technologies. The top layer, made of genuine granite, offers striking visual appeal, a diamond-hard surface, and substantial mass for stability. Beneath it, the inner conduction layer functions as a band-pass filter, channeling vibrational energy to the lower damping layer—effectively isolating equipment and enhancing sonic performance.
Continue Reading
At Adona, we use aluminum for the vertical columns and steel for the horizontal cross beams—a deliberate material pairing that addresses a critical issue we call the "cage effect." This phenomenon occurs in frames made entirely of aluminum, where vibrational energy loops through the structure and feeds back into itself, particularly along the longitudinal axis. Simply applying damping material to the surface doesn’t resolve the problem.
To illustrate, drop an aluminum extension ladder on the ground and listen to the loud clang it produces. That ringing sound is a perfect example of the cage effect—a sonic characteristic inherent to all-aluminum frames.
Our solution is simple and effective: by combining materials with different mechanical properties—aluminum for columns and steel for beams—we break up these vibrational pathways. The result? Adona rack frames are among the quietest in the industry, delivering outstanding acoustic isolation and sonic neutrality.
These massive columns, measuring 3 inches in diameter, weigh nearly two pounds per linear foot. Precision-extruded from aluminum and originally developed for use in industrial machinery frames, these columns bring exceptional strength and stability to our racks. Aluminum is an ideal choice for audio rack columns, as it efficiently transmits vibrational energy along its longitudinal axis—where it can be effectively drained into the floor, minimizing unwanted resonance.

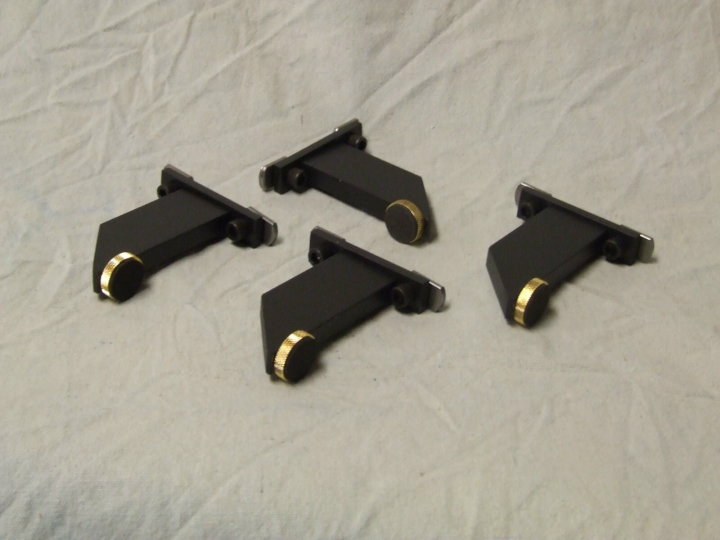

The platform support brackets
These attractive shelf supports are precision-machined from 3/4-inch thick solid billet aluminum and weigh nearly half a pound each. They are designed to accept a wide range of industry-standard devices, giving you the flexibility to either direct-couple or float your platforms. All Altair Series racks come standard with direct-couple leveling devices for superior stability and performance.
The primary function of spiking is to focus the weight of the rack onto an infinitely small surface area, although some floor finishes make the use of such devices impractical. Therefore, we offer optional floor discs, as well as glides and casters. Includes: brass floor cones, shown with optional glides.
Modular X-Frame Expansion Connector
The X-Frame expansion connector allows racks to be expanded horizontally. You may begin with a single width rack and expand it to make it a double or triple width rack at any time.
